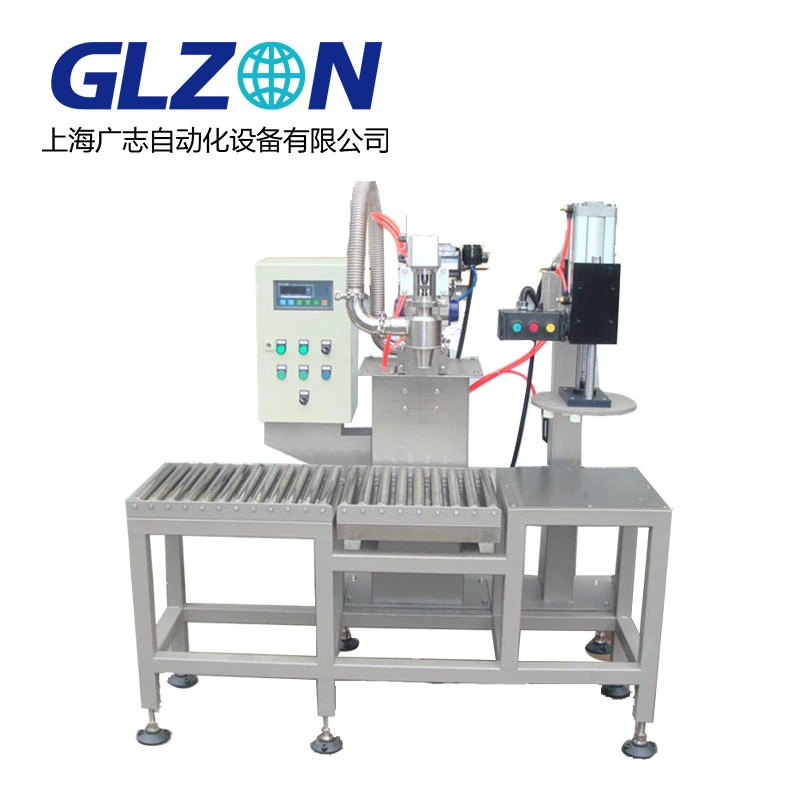

50L pail/can paint filling machine
The 50L Pail/Can Paint Filling Machine is a high-efficiency, precision-engineered solution designed for seamless large-volume paint packaging. Its core features include automated filling with ±0.5% accuracy, corrosion-resistant stainless steel construction, and adjustable nozzle settings to handle diverse viscosities. Equipped with a user-friendly PLC touchscreen, it ensures effortless operation and quick changeovers between pail sizes (5-50L). The machine boosts productivity by filling up to 20 containers/minute while minimizing spillage and waste. Ideal for paint manufacturers, it reduces labor costs by 60% and complies with ISO safety standards. Its durable design guarantees low maintenance, offering long-term ROI—perfect for businesses scaling production sustainably.
Main features
1. The system adopts foreign advanced technology, and the weighing filling machine produced has high measurement accuracy and is not affected by the material;
2. Through fast and slow feeding valves, both the filling speed and filling accuracy can be improved;
3. Wide measuring range, adjustable within 10-100 kg;
4. The filling head adopts an anti-drip device, there is no bubble when filling real stone paint and latex paint, and the canning effect is good;
5. Automatically control feeding, equipped with pneumatic clamping cover and pneumatic pressing plate device, filling volume* can store more than 10 formulas for easy switching.
Main structure and working principle
Continuous stable feeding way: requirements for material (in transporting pump or hopper pressure feed); feed mechanism by electromagnetic valve by cylinder respectively perform rapid and slow feeding; filling way: ordinary regular filling and lifting submersible filling (choose according to need to order); weighing system by weighting stents, sensors, weighing platform, unpowered roller, frame support, filling system control; pneumatic control system: fast and slow feeding valve; filling nozzle height can be adjusted through at the top of the handwheel.
basic parameters
Weighing scale
<70kg
Division value
10g,20g,50g
Level class accuracy
X(0.5)level
Filling speed
6-10 cans/min
Barrel dimension
Diameter 400 x height 600 mm
Power supply
AC 220±10% 50HZ
Air source
>0.5MPa
Outlook size
1800 x 800 x 1200 mm
APPLICABLE BARREL TYPE
COMPANY PROFILE
Shanghai Guangzhi Automation Equipment Co., Ltd. is a production and trading company specializing in the weighing industry. We are located in Shanghai, China's economic city, with convenient transportation and export ports all over the world. We cooperate with state-owned factories and international companies, and the quality is guaranteed.
We mainly focus on providing customers with weighing solutions, from commercial scales to industrial weighing machines. Such as pneumatic valve bag packaging machine, dry mix mortar bag packaging machine, cement packaging machine, natural stone powder packaging machine, flour powder packaging machine, wheat packaging machine, potato starch packaging machine, air packaging machine, granule bag packaging machine, grain packaging machine, fertilizer bag packaging machine, lubricant filling machine, 200 kg drum filling machine, 216L drum filling machine, 208L drum filling machine, ton barrel filling machine, IBC barrel filling machine, jumbo bag packaging machine, ton bag packaging machine, 30L pail filling machine, 50L pail asphalt filling machine, ATEX barrel filling machine, explosion-proof filling machine, etc.
Company Certificate
Our office and workshop
Consulting-Design-Procurement-Processing-Production-Installation-Debugging-Training-Maintenance
This is a partial service for us in China.
Over 30 years of experience, every time we produce in Shanghai, our friends can visit our factory at any time.
Brand components
We will ensure that our company's equipment has safety, stability, high efficiency and intelli-gent technology, so as to meet your needs, we can also cooperate with you in selecting in-ternational product brand production and business.
Our service
packge and delivery
Multiple Transportation way :Express(Fedex/DHL/TNT/EMS/UPS etc),air and shipping for your choose
FAQs
Our in-house designers and engineers have produced countless great designs for customers from different industries
