As professional filling equipment manufacturer in China. GLZON specialized in creating liquid filling systems for over 22 years.

Bag-type liquid filling machine from 0.1L to 2L 1
Bag-type liquid filling machine from 0.1L to 2L 1

Bag-type liquid filling machine from 0.1L to 2L

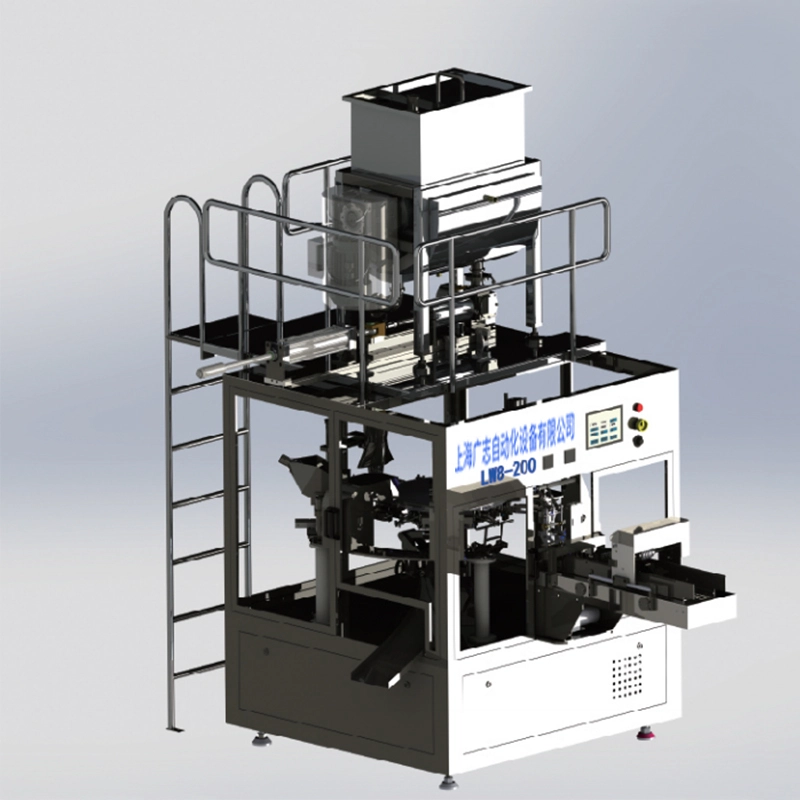

The roll film bagging packaging machine is suitable for automatic metering and packaging of granular materials such as melon seeds, nuts, candies, raisins, wolfberries, red dates, potato chips, biscuits, crystallized flavor crystals, white sugar, feed, mineral salt, sea salt, sea crystals, etc. This machine is a large, vertical, three-side sealing, pillow-shaped bag, intermittent packaging machine. It can automatically complete the whole process of bag making, metering, filling, sealing, printing batch numbers, cutting, counting, etc.



    oops...!

    no product data.

    Go to homepage

    Main features:

    The roll film bagging packaging machine is suitable for automatic metering and packaging of granular materials such as melon seeds, nuts, candies, raisins, wolfberries, red dates, potato chips, biscuits, crystallized flavor crystals, white sugar, feed, mineral salt, sea salt, sea crystals, etc. This machine is a large, vertical, three-side sealing, pillow-shaped bag, intermittent packaging machine. It can automatically complete the whole process of bag making, metering, filling, sealing, printing batch numbers, cutting, counting, etc.

    Technical indicators:

    Workflow
     automatic bag picking-print date-bag opening-filling-dust removal (exhaust)-sealing-finished product output.
    Bag types flat bags, stand-up bags, PE bags, composite film bags.
    Bag size  W (100-300mm), L<500mm
    Capacity 50g~5000g
    Power supply AC380V±10% 50HZ
    Production
    20~50 bags/min (depending on the material)
    Air source 0.5MPA
    Filling precision ±0.5%
    Measuring method volumetric (weighing method can also be used)
    Print date ribbon (inkjet coding can also be used)
    Sealing method
    heating and heat sealin
