As professional filling equipment manufacturer in China. GLZON specialized in creating liquid filling systems for over 22 years.

Piston filling machine 1
Piston filling machine 1

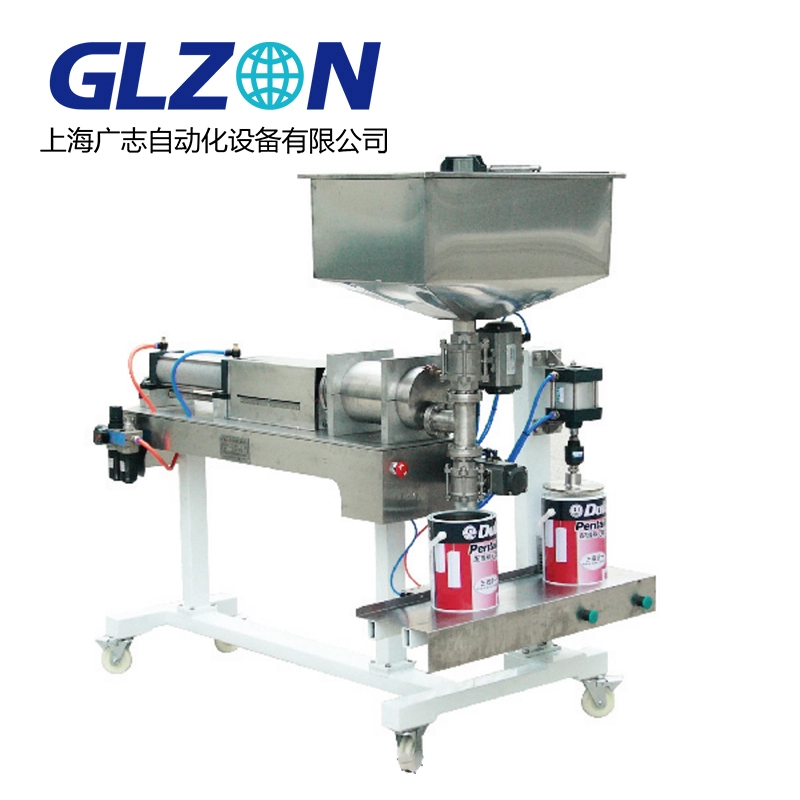

Piston filling machine

The Piston Filling Machine delivers high-precision volumetric filling for liquids, pastes, and viscous products (e.g., creams, sauces, paints, adhesives). Its stainless steel/industrial-grade construction ensures durability, while the adjustable piston mechanism guarantees ±1% accuracy, minimizing waste. Suitable for food, cosmetics, pharmaceuticals, and chemicals, it supports variable container sizes and offers easy cleaning (CIP/SIP options). Key features include drip-free nozzles, speed control, and optional heating/cooling. Ideal for high-speed production lines, it boosts efficiency, reduces downtime, and ensures consistent fills—every time. FDA, CE, and ATEX compliance available. Upgrade your packaging process today!

    oops...!

    no product data.

    Go to homepage
    Place of Origin.
    Shanghai, China
    Driven Type
    Electric
    Brand Name
    GLZON
    22 (3)

    Main features

    1. Applicable to industries such as food, medicine, daily chemical, pesticide, etc;

    2.  This device has the characteristics of compact and beautiful design, simple and easy to understand operation, and high accuracy.;

    3.  This machine adopts a special three-way filling valve, which achieves material filling through the reciprocating motion of the cylinder, making it an ideal alternative equipment for manual operations;

    4. The material contact part is made of 316L stainless steel material, which meets GMP requirements. For highly corrosive liquids, the contact part of the material is made of polytetrafluoroethylene material to ensure the long-term stable operation of the equipment;

    5. The filling volume and filling speed can be adjusted arbitrarily, with high filling accuracy;

    6. The filling head adopts anti drip, anti drawing, and lifting filling devices.

    Main structure and working principle

    A piston filling machine is a type of filling machine that fills high concentration fluids. It uses a three-way principle of a piston and a rotary valve driven by a cylinder to extract and dispense high concentration materials. The stroke of the cylinder is controlled by a magnetic spring switch to adjust the filling amount.

    22 (3)

    basic parameters

    Number of filling heads

    1-6 heads

    Filling capacity

    40ml-5000ml

    Power supply

    220V/50HZ 0.1KW

    Filling error

    ≤ ±1%

    Production speed

    ≤ 2500 bottles/hour (calculated based on 100ml of water as the medium)

    Boundary dimension

    1000mm × 500mm × 1200mm

    Machine weight

    100Kg

    Gas source requirements

    A stable 0.55MPa-0.65Mpa gas source

    APPLICABLE BARREL TYPE

    3桶型-01

    COMPANY PROFILE

    Shanghai Guangzhi Automation Equipment Co., Ltd. is a production and trading company specializing in the weighing industry. We are located in Shanghai, China's economic city, with convenient transportation and export ports all over the world. We cooperate with state-owned factories and international companies, and the quality is guaranteed.

    We mainly focus on providing customers with weighing solutions, from commercial scales to industrial weighing machines. Such as pneumatic valve bag packaging machine, dry mix mortar bag packaging machine, cement packaging machine, natural stone powder packaging machine, flour powder packaging machine, wheat packaging machine, potato starch packaging machine, air packaging machine, granule bag packaging machine, grain packaging machine, fertilizer bag packaging machine, lubricant filling machine, 200 kg drum filling machine, 216L drum filling machine, 208L drum filling machine, ton barrel filling machine, IBC barrel filling machine, jumbo bag packaging machine, ton bag packaging machine, 30L pail filling machine, 50L pail asphalt filling machine, ATEX barrel filling machine, explosion-proof filling machine, etc.

    2上海广志3570dpi500kb

    Company Certificate

    1上海广志营业执照 (1)
    1防爆合格证
    1环境管理体系认证
    1企业信用等级 (2)
    1企业信用等级 (3)
    1企业信用等级证书 (1)
    1职业健康安全管理体系认证证书
    1质量管理体系 (1)
    1质量管理体系 (2)

    Our office and workshop

    Consulting-Design-Procurement-Processing-Production-Installation-Debugging-Training-Maintenance

    Sales team
    Sales team
    Here is the latest news about sales operation team. Our sales team is professional and patient, ready for your inquiry at any time!
    Piston filling machine 16
    Foreign trade team
    This is our foreign trade team,We receive customers from at home and abroad, and wecooperate with thousands of customers so far!
    Piston filling machine 17
    Experienced technicians
    We have a wealth of technical personnel, and ourtechnical team has been developing technical skills for over ten years.
    办公室环境 (10)
    Free design packaging filling line drawings
    Our technical team is strictly trained and experienced formany years!
    办公室环境 (6)
    One-stop service
    Good environment office and big factory you can come tovisit any time!
    办公室环境 (5)
    One-stop service
    Good environment office and big factory you can come tovisit any time!
    办公室环境 (4)
    One-stop service
    Good environment office and big factory you can come tovisit any time!
    办公室环境 (3)
    One-stop service
    Good environment office and big factory you can come tovisit any time!

    Live Shooting

    Support customization, low price, no middlemen, factory direct sales, large quantity and more favorable. Product quality assurance, simple operation and durability. We have professional customer service to consult and provide technical guidance at any time.

    This is a partial service for us in China.

    Over 30 years of experience, every time we produce in Shanghai, our friends can visit our factory at any time.

    Piston filling machine 29
    Piston filling machine 30

    Brand components

    We will ensure that our company's equipment has safety, stability, high efficiency and intelli-gent technology, so as to meet your needs, we can also cooperate with you in selecting in-ternational product brand production and business.

    Piston filling machine 31
    Piston filling machine 32
    Piston filling machine 33
    Piston filling machine 34
    Piston filling machine 35
    Piston filling machine 36
    Piston filling machine 37
    Piston filling machine 38



    Our service

    Piston filling machine 39
    Complete solution provided
    Telephone exchange joint business design plan, you can also visit our company ; we have a good environmental office vehicle,you can visit from time to time.
    Piston filling machine 40
    Technology group
    We have a wealth of technical personnel and our technical team has been developing technical skills for over ten years
    256966-1F504092T158
    Piston filling machine 42
    Duty after death
    Our music team has a strong heart, and the customer's suspicions are also the purpose 24 hours of phone cell service and listing to the conversation at any time
    Piston filling machine 43
    Successful collaboration
    our factory in Shanghai. China provides free training for our technical staff.Better guarantee good product safety , our company provides safety, convenience, high efficlency packaging servic.

    packge and delivery

    Multiple Transportation way :Express(Fedex/DHL/TNT/EMS/UPS etc),air and shipping for your choose

    Piston filling machine 44
    Delivery and shipping
    We have our long cooperation shipping forwarder,if you want toknow theshipping fee to your port,contact us for the competitivequotation
    Piston filling machine 45
    Wrapping filmand packing wooden case
    Transparent film seal ,Rigorous packaging
    Piston filling machine 46
    Order packing to the truck
    Round solid protection wooden box,Reinforced around
    88ff76722edf3b68ecdf3b5ec160c96bb2d05c54689bd-4TEV (2)

    FAQs

    Our in-house designers and engineers have produced countless great designs for customers from different industries

    1
    Can we get your free samples?
    Samples can be offered for free. But courier cost for the samples should be at buyer's account.
    2
    Can you print our LOGO in flatware set?
    Yes.we can print the logo on the flatware set as your requirements.Embossed, laser,stamped and engraved are available.
    3
    How long is the delivery time of sample?
    Samples from stock can be sent within 1-3 days. New produced samples will be sent within 5-15 days.
    4
    Is there any MOQ for what I purchase?
    Yes, we have MOQ for mass production. Different item with different package has different MOQ. Please contact us for more details.
    5
    Do you accept OEM or ODM services?
    OEM and ODM are accepted!
    6
    What is 18-10 Stainless Steel Flatware?
    18-10 refers to the composition of stainless steel. It contains 18% chromium and 10% nickel for excellent strength and corrosion resistance.
