Drum filling machine – LSB

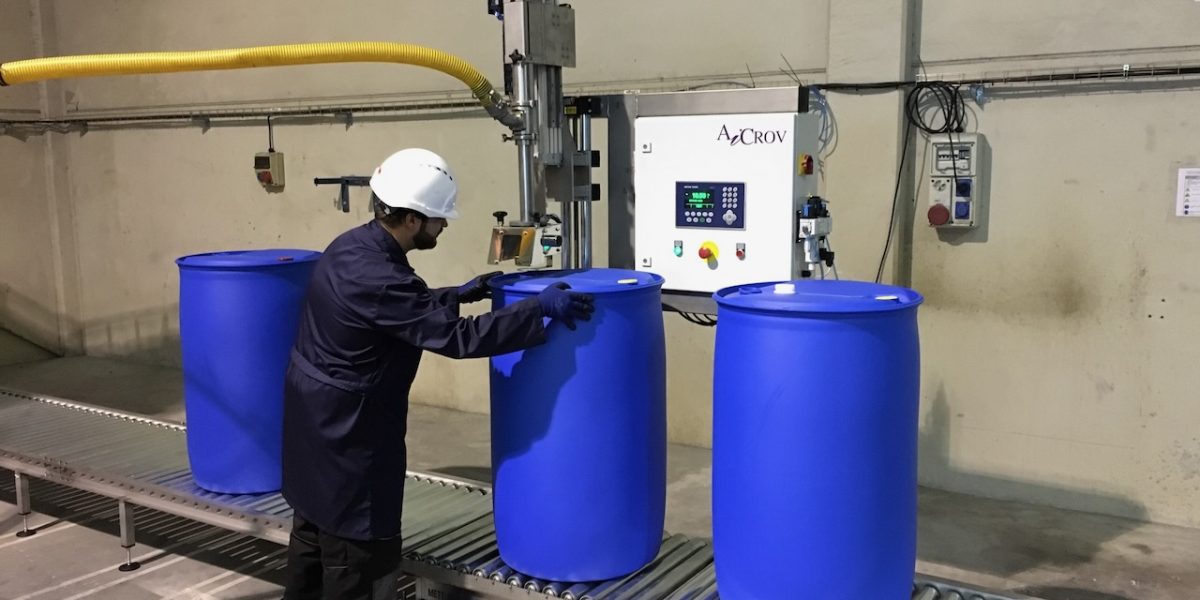

The drum filling machine LSB is a semiautomatic equipment suitable for filling liquid and viscous products in drums. This semiautomatic drum filling machine gives you the possibility to fill from 60 to 250l metal and plastic drums. Like all our machinery, the filling process is automatic and safe for the operator.

Precision, durability and ease of use are some of the qualities of the drum filling machine LSB. It’s a good preconfigured system for those who want to fill drums at a great price.

Main features

Quick configuration and start-up
Easy to use
High reliability and durability of the equipment
Adjustable packaging height

Integrated control system
Does not require installation
ATEX certification (optional)
Food grade (optional)

Technical specifications

Discover the technical specifications of our drum filling machine LSB

Approximate nominal productions	65 drums/hour (220 liters)
Base height range of adjustment	550 mm servo adjustment
Weight scale resolution	+/- 50 gr
Product pump control	3 potential contacts for controlling an on-site pump or a pilot valve for gross/fine fill
Power	Electrical: 240V, 50-60Hz, 0,5Kw
Required air pressure	5 bar
Work temperature	-10ºC a +45ºC
Product temperature	0ºC a +130ºC
Product connection	1 ½ inch male camlock
Approximate weight	300Kg

Semi-automatic
