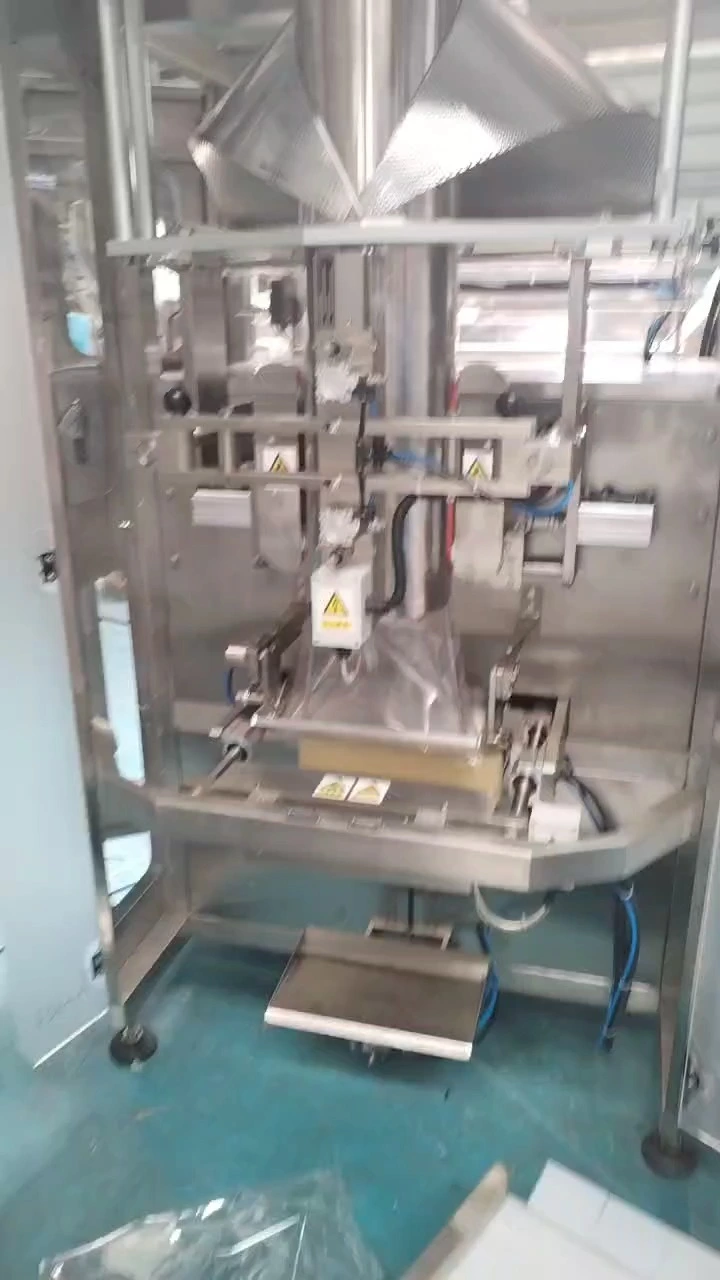

Vertical Form Fill Seal Packing Machine

The roll film bagging packaging machine is suitable for automatic metering and packaging of granular materials such as melon seeds, nuts, candies, raisins, wolfberries, red dates, potato chips, biscuits, crystallized flavor crystals, white sugar, feed, mineral salt, sea salt, sea crystals, etc. This machine is a large, vertical, three-side sealing, pillow-shaped bag, intermittent packaging machine. It can automatically complete the whole process of bag making, metering, filling, sealing, printing batch numbers, cutting, counting, etc.

    oops...!

    no product data.

    Go to homepage
    Vertical Form Fill Seal Packing Machine 6
    Vertical Form Fill Seal Packing Machine 7Vertical Form Fill Seal Packing Machine 8Vertical Form Fill Seal Packing Machine 9Vertical Form Fill Seal Packing Machine 10
    Product Parameters
    Model  320VFFS 420VFFS 520VFFS 620VFFS 720VFFS
    Packing Speed 10-80p/M 10-70p/M 10-60p/M 10-50p/M 10-45p/M
    Bag Size 50-200mm(L)*60-150mm(W) 60-300mm(L)*60-200mm(W) 50-350mm(L)*50-250mm(W) 20-400mm(L)*100-300mm(W) 20-450mm(L)*140-350mm(W)
    Film Width 140-320mm 140-420mm 120-520mm 620mm 720mm
    Bag Type Pillow bag, gusset bag, hole punching bag, vacuum bag,quad seal bag
    Film Thickness 0.04-0.09mm 0.04-0.09mm 0.04-0.09mm 0.04-0.09mm 0.06-0.12mm
    Film Material BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET, PET/PE
    Pulling Belt Type Single/dual belt Single/dual belt Synchronous belt film pulling Synchronous servo motor belt film pulling Synchronous servo motor belt film pulling
    Air Consumption 0.8Mpa 0.25m³/min 0.8Mpa 0.5m³/min 0.7Mpa 0.4m³/min 0.7Mpa 0.5m³/min 0.7Mpa 0.65m³/min
    Power Suppply Single phase 220V 50/60Hz, 2.2kw Single phase 220V 50/60Hz, 2.2kw Single phase 220V 50/60Hz, 3.4kw Single phase 220V 50/60Hz, 4.0kw Single phase 220V 50/60Hz, 4.5kw
    Machine Dimension 1115*800*1370mm 1530*970*1600mm 1560*1160*1530mm 1250*1600*1700mm 1360*1630*1900mm
    Machine Weight 300kg 450kg 480kg 800kg

    900kg
