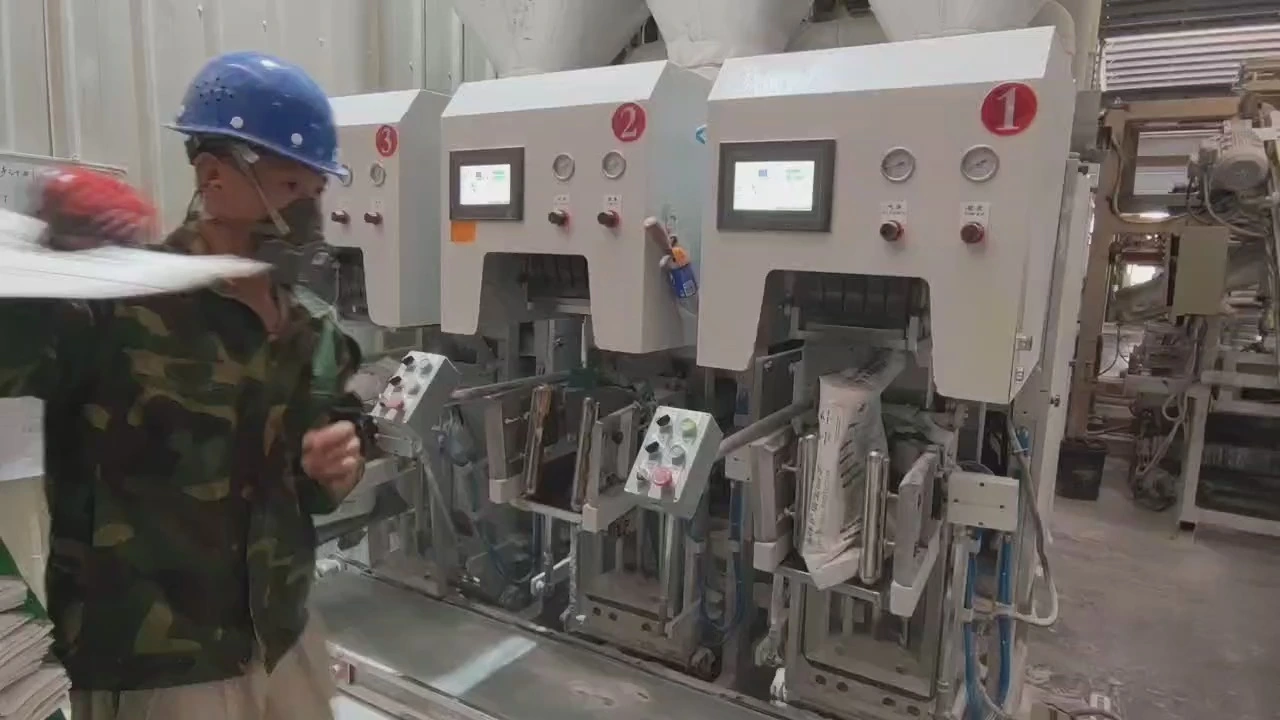

The valve port packaging machine developed by our company is divided into two feeding forms: air blowing and impeller. In the air pressure feeding mode, compressed air passes through the microporous plate to fluidize the material in the closed container. In the impeller feeding mode, the impeller rotates to push the material and assists the blowing to make the material flow, reducing the use of air, so as to achieve the purpose of conveying and feeding. The scissor valve is used to control the feeding speed and accuracy. At the same time, bag turning, horizontal push and other bag unloading methods are provided.
The valve bag packaging scale adopts gross weight measurement. The whole system takes into account the user's usage habits, takes accurate measurement and convenient operation as the basic principles, and can meet the on-site requirements to the greatest extent. It adopts a bellows weighing sensor with high comprehensive accuracy, good long-term stability and impact resistance, and has the characteristics of compact structure, reliable performance and high degree of automation.
Fast packaging speed;
High packaging accuracy;
High degree of automation in the output process: the packaged bags are delivered to the conveying equipment after the unloading mechanism or horizontal push mechanism. The conveying equipment is optional.
Simple and convenient operation: empty bag loading: manual bagging, pneumatic bag clamping;
heavy bag unloading: automatic bag loosening and material unloading after weighing;
high reliability: weighing system can be selected from Mettler Toledo, Ningbo Keli or Shanghai Xianpai.
The optional components of the control system are high-quality brands such as SIEMENS and Schneider products;
the main components of the pneumatic system are AirTac brand.
All equipment is made of high-quality carbon steel, which is first sandblasted and rust-proofed and then sprayed.
3.1 Material characteristics
The material has good fluidity and can flow freely into the fluidized bin of the packaging machine under the action of gravity; the material is not easy to be atomized and can settle down in a short time after the external action is removed.
Material name: dry mortar, gypsum mortar, putty powder or other powder
3.2 Working capacity
Packing range: 15 kg/bag, 50 kg/bag;
Packing accuracy: ±1%;
Packing speed: >250 bags/hour (depending on factors such as material flow characteristics, net weight of packaging and manual bagging speed).
3.4 Working mode
Manual bagging - automatic bag clamping - material filling and automatic weighing - automatic bag loosening - automatic bag pushing/turning - conveyor transportation
3.5 Working environment
Installation location: indoor
Normal working environment temperature: -10℃~40℃
Relative humidity: < 95% (no condensation)
3.6 Installation requirements
Single scale
Power supply: single phase AC380V (10% fluctuation); frequency: 50Hz; power: 550W air blowing/impeller 7.5KW;
Air source pressure: not less than 0.6MPa; air consumption: 0.5m³/min (air blowing); 10mm air pipe) connection;
Dust removal requirements: wind pressure: -0.01~-0.03bar adjustable; air volume: 2000m3/hour, Φ100 air duct connection
