As professional filling equipment manufacturer in China. GLZON specialized in creating liquid filling systems for over 22 years.

Fully Automatic Valve Bag Packer 1
Fully Automatic Valve Bag Packer 2
Fully Automatic Valve Bag Packer 3
Fully Automatic Valve Bag Packer 4
Fully Automatic Valve Bag Packer 1
Fully Automatic Valve Bag Packer 2
Fully Automatic Valve Bag Packer 3
Fully Automatic Valve Bag Packer 4

Fully Automatic Valve Bag Packer

How It Works:

 In its most basic format the Pneumatic Valve Packaging Equipment works on differential pressure between the chamber (1) where the product is stored and the external atmosphere where the product emerges from the nozzle (2) (location of valve bag).  The aeration pad liquefies the product in the chamber, and the pressure differentials enable product to naturally flow and fill valve bags at typically 5-8 20kg bags per minute.

    oops...!

    no product data.

    Go to homepage

    How It Works:

     In its most basic format the  packer works on differential pressure between the chamber (1) where the product is stored and the external atmosphere where the product emerges from the nozzle (2) (location of valve bag).  The aeration pad liquefies the product in the chamber, and the pressure differentials enable product to naturally flow and fill valve bags at typically 5-8 20kg bags per minute.







    Main Features Include:

    • Easy, contamination free clean out and changeover of new products via a submarine style rear hatch

    • High accuracy via patented load cell technology

    • High throughput achieved

    • Easy to operate set and forget controls

    • Universal and industrial components and excellent machinery construction result in long lasting, equipment of exceptional quality.

    • Manufactured for compliance above and beyond Australian standards

    • Pneumatic and electrical control equipment housed in a positive pressure enclosure, keeping sensitive components dust free

    • Built from structural steel, giving maximum strength with minimal dimensions

    • Additional second stage filling hand wheel for adjusting slow speed flow of product

    • Industrial high strength anti- wearing butterfly valve specifically designed for abrasive products

    Bag storage (empty bag placement machine): A standard bag storage should have the following three characteristics: 50 empty bags can be placed in each position, three usual empty bag positions, after the empty bags in the current position are used up, follow-up empty bags will be automatically sent to the suction bag position for packaging. On-site operators can re-place a stack of empty bags in the empty bag positions. During this process, there is no need to pause the production, which ensures the continuity of the production of packaging bags.

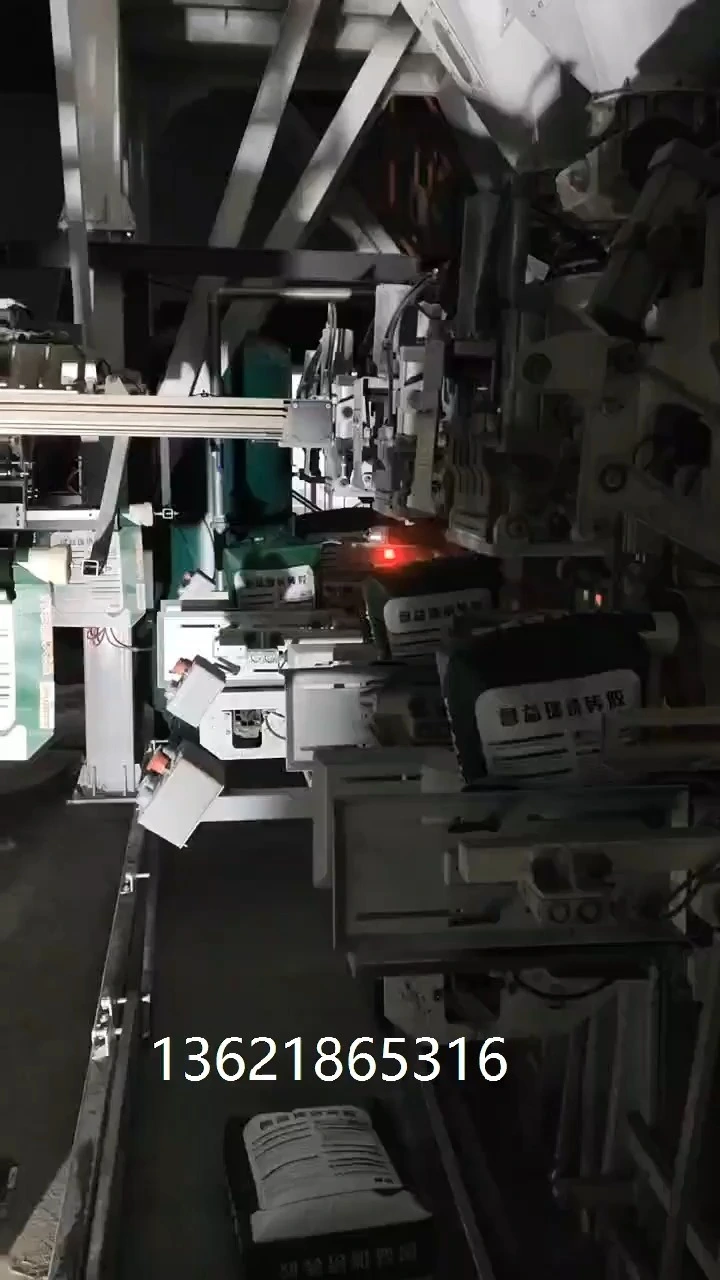

    Automatic bagging manipulator: The inner valve bag is sucked up by the suction cup and opened, and then the mechanical claw puts it on the discharge tube. When the packaging machine detects that the packaging bag is in place, the machine starts filling.



    Fully Automatic Valve Bag Packer 5Fully Automatic Valve Bag Packer 6Fully Automatic Valve Bag Packer 7Fully Automatic Valve Bag Packer 8
